At a Glance
12mm
Focal Length
60°
Apparent FOV
16mm
Eye Relief
1.25"
Barrel Size
Score Breakdown
Overview

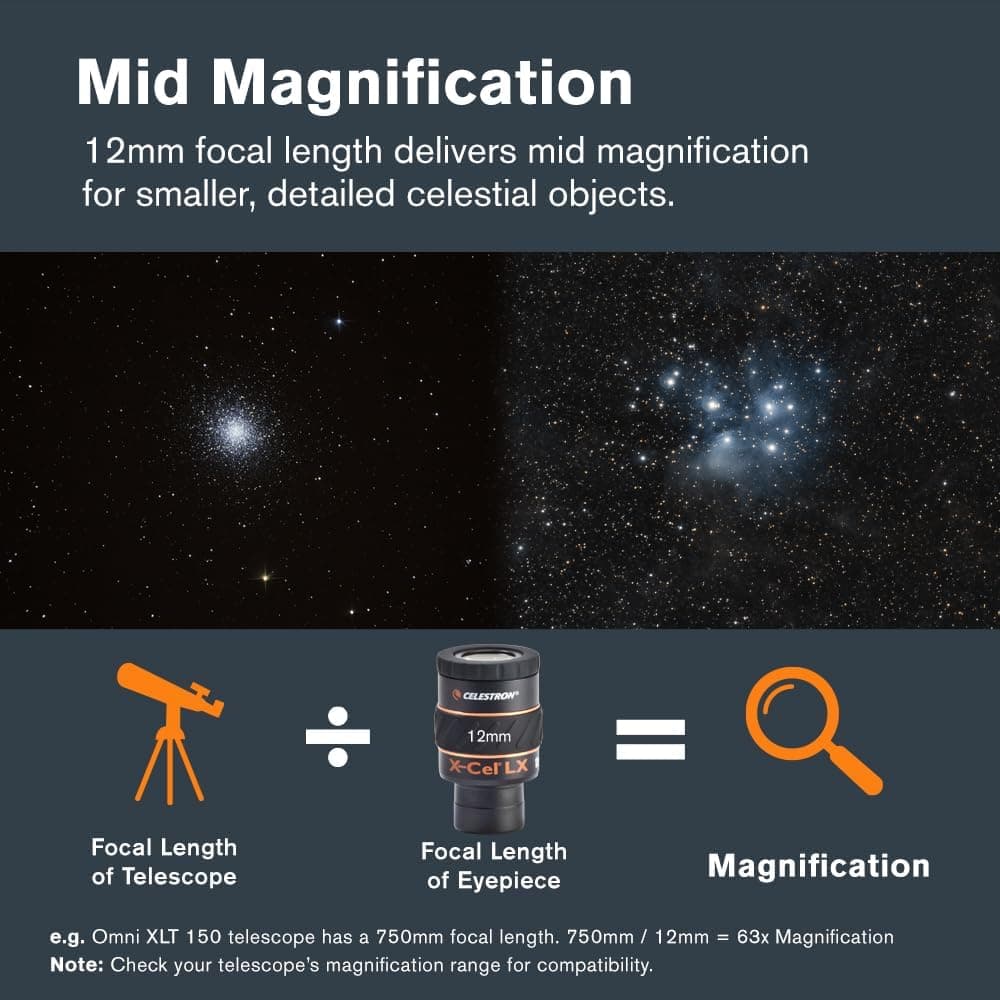

The Celestron X-Cel LX 12mm is a solid mid-range eyepiece aimed primarily at lunar and planetary observers. With a 12mm focal length, it delivers a useful mid-to-high magnification when paired with most telescopes, making it a practical choice for resolving detail on planets like Saturn and Jupiter. The 60-degree apparent field of view is modest by modern standards but sufficient for keeping a planet centered during a session without constant nudging.
The six-element optical design is fully multi-coated, which helps transmission and contrast noticeably compared to budget eyepieces. Blackened lens edges further improve contrast, which matters when you are trying to pull faint detail off a bright planetary disk. Eye relief sits at 16mm across the entire X-Cel LX series, a comfortable spec that works well for eyeglass wearers.
One genuinely useful design choice is that all X-Cel LX eyepieces are parfocal, meaning you can swap focal lengths within the series without significant refocusing. The threaded 1.25-inch barrel accepts standard filters, and the rubber grip is practical for cold-weather observing. At $93, this is not the cheapest option, but the build quality and optical performance are consistent with the price.
Key Features

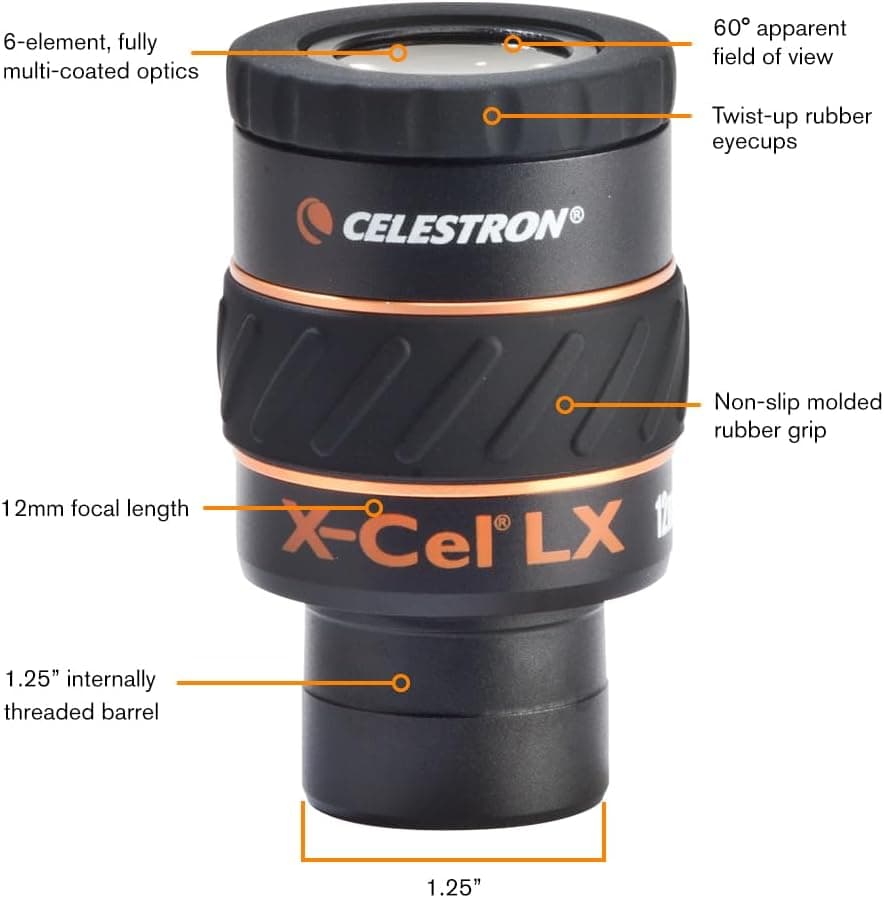

- Six-element fully multi-coated optics improve light transmission and deliver sharper contrast than entry-level eyepieces
- Blackened lens edges reduce internal scatter, which directly benefits planetary detail and contrast

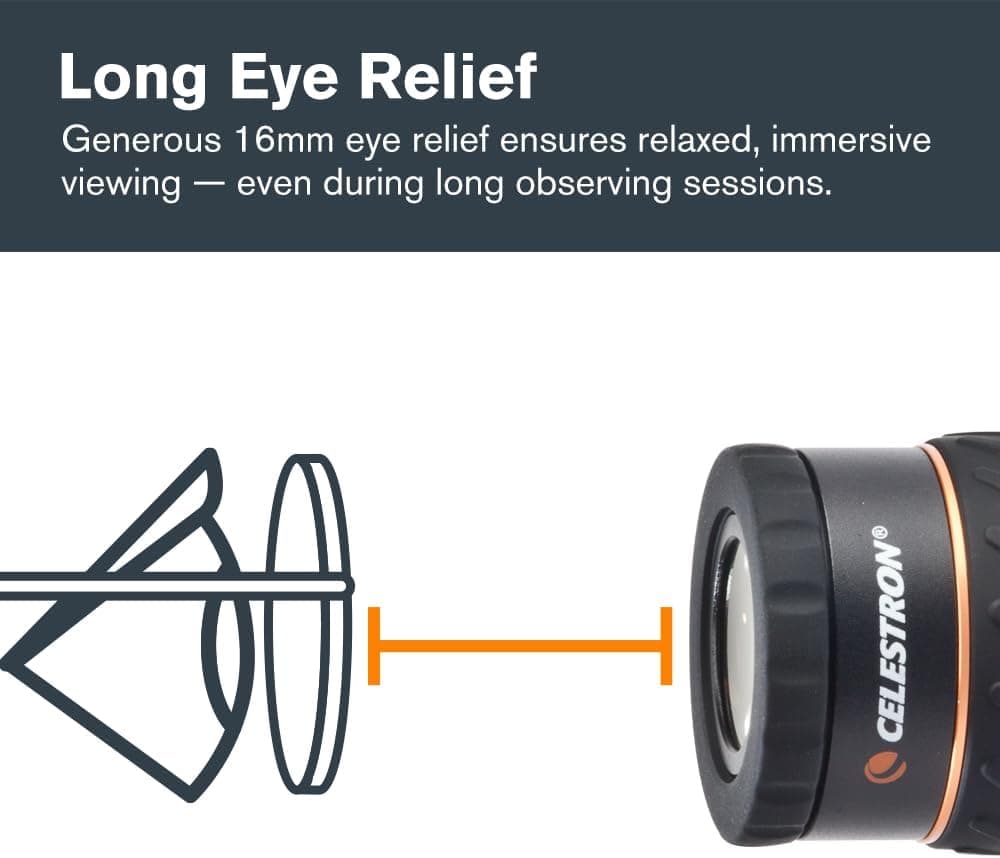

- 16mm of eye relief works comfortably for eyeglass wearers across extended sessions
- Parfocal design within the X-Cel LX series lets you swap eyepieces without hunting for focus each time

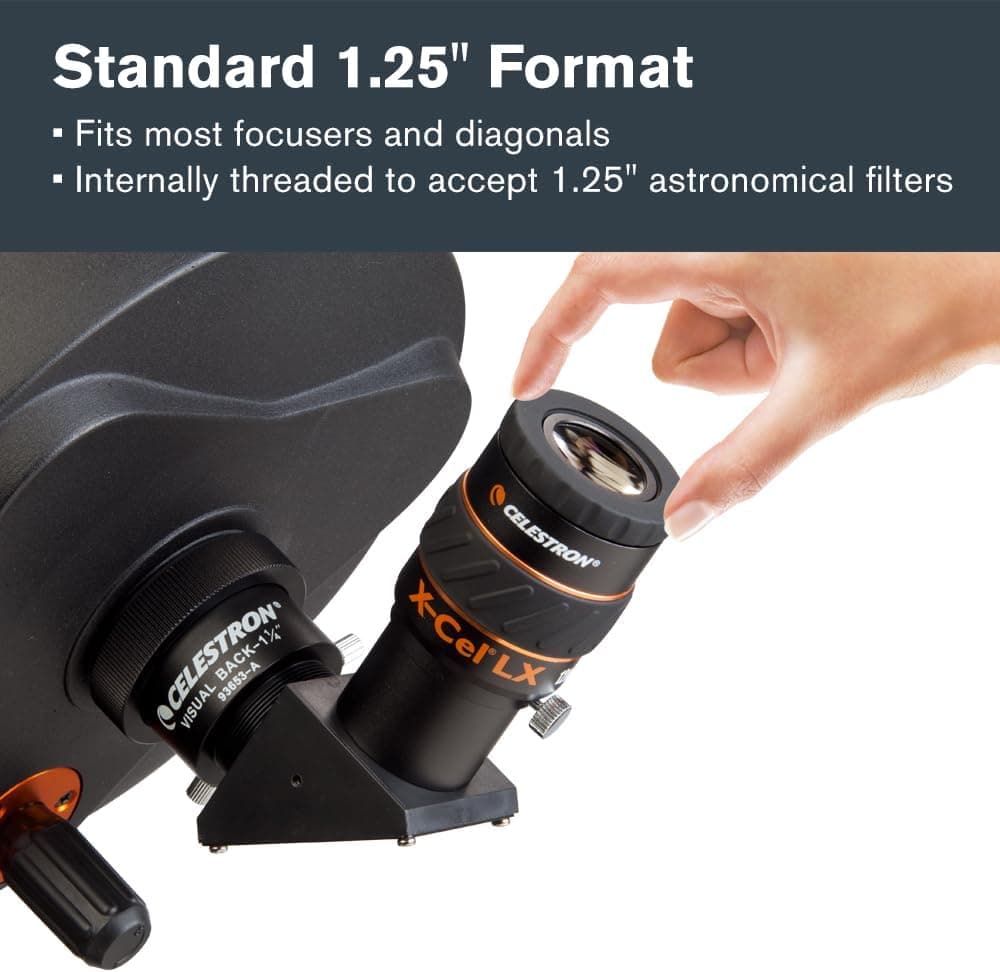

- Threaded 1.25-inch barrel accepts standard filters for moon, narrowband, or color planetary work
- Twist-up rubber eyeguard adjusts for comfort and helps block stray light around the eye
- Textured rubber grip makes handling easier in cold conditions or with gloves on
Specifications
| Focal Length | 12mm |
| Apparent FOV | 60° |
| Eye Relief | 16mm |
| Barrel Size | 1.25" |
| Field Stop | 11.5mm |
| Design | Modified Erfle |
| Elements/Groups | 6/4 |
| Series | X-Cel LX |
| Coating | Fully Multi-Coated |
| Weight | 0.18kg |
| Waterproof | No |
Popular Telescopes for This Eyepiece
Sky-Watcher FlexTube 300 SynScan
125x / 2.4mm exit pupil / Dobsonian
Celestron NexStar 130SLT
54x / 2.4mm exit pupil / Newtonian
Sky-Watcher FlexTube 300P
125x / 2.4mm exit pupil / Dobsonian
Celestron 114LCM
83x / 1.4mm exit pupil / Newtonian
Amazon Reviews
This product is very popular and I see why now. I love the sturdiness and durability of the eyepiece! And of course the quality of views. This is my mostly used eyepiece with or without Barlow…. The adjustable eye up allowed me to take photos aswell with my phone and it looks even better to the nake...
Celestron X-cel LX eyepieces are wonderful. I only wish they could be lighter. You would need to spend about $100 more to get a better eyepiece
What a wonderful eyepiece. This eyepiece is orders of magnitude better than the kit eyepiece or the Accessory Kit eyepieces. The view is much clearer and brighter. The view across the entire eyepiece is the same, edge to edge, everything in focus and with the same level of brightness. That's not say...
Try this eyepiece in our calculators
See how this eyepiece performs with any telescope.
