At a Glance
7mm
Focal Length
60°
Apparent FOV
16mm
Eye Relief
1.25"
Barrel Size
Score Breakdown
Overview

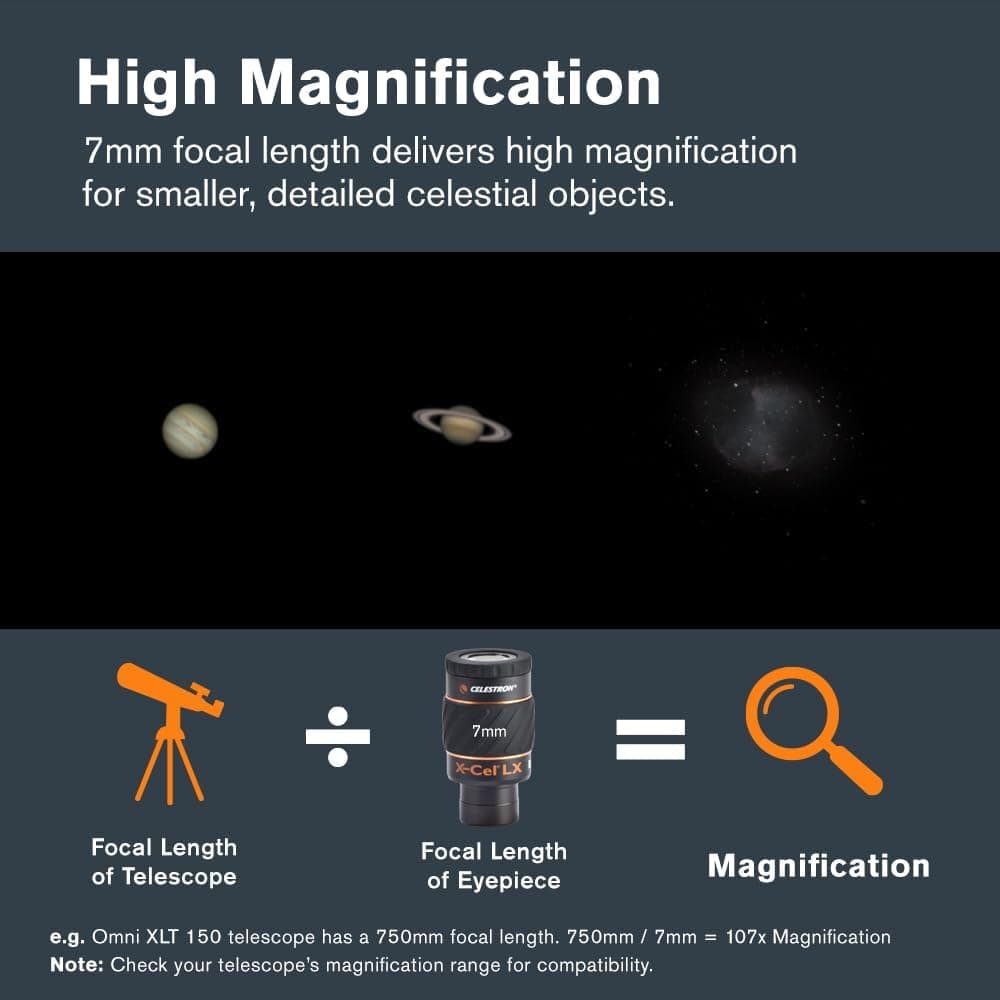

The Celestron X-Cel LX 7mm is a short focal length eyepiece built with planetary and lunar observing in mind. At 7mm, it delivers high magnification on whatever telescope you pair it with, making it a practical choice when you want to push in close on Saturn's rings or the Moon's craters. The 60-degree apparent field of view is generous for this focal length, giving you enough sky to keep targets comfortable in the frame even at higher powers.
The six-element fully multi-coated optical design handles contrast reasonably well, and the blackened lens edges help cut down internal scatter, which matters when you are staring at a bright planet against a dark sky. Eye relief sits at 16mm across the entire X-Cel LX lineup, which is a genuine comfort advantage at this magnification range, particularly for eyeglass wearers. Being parfocal with the other X-Cel LX eyepieces is a practical benefit if you own more than one in the series, since swapping between them mid-session requires minimal refocusing.
The barrel accepts standard 1.25-inch filters, and the rubber grip and twist-up eyeguard are solid quality-of-life additions. At $93, it competes well against similarly priced options from Baader and Meade.
Key Features

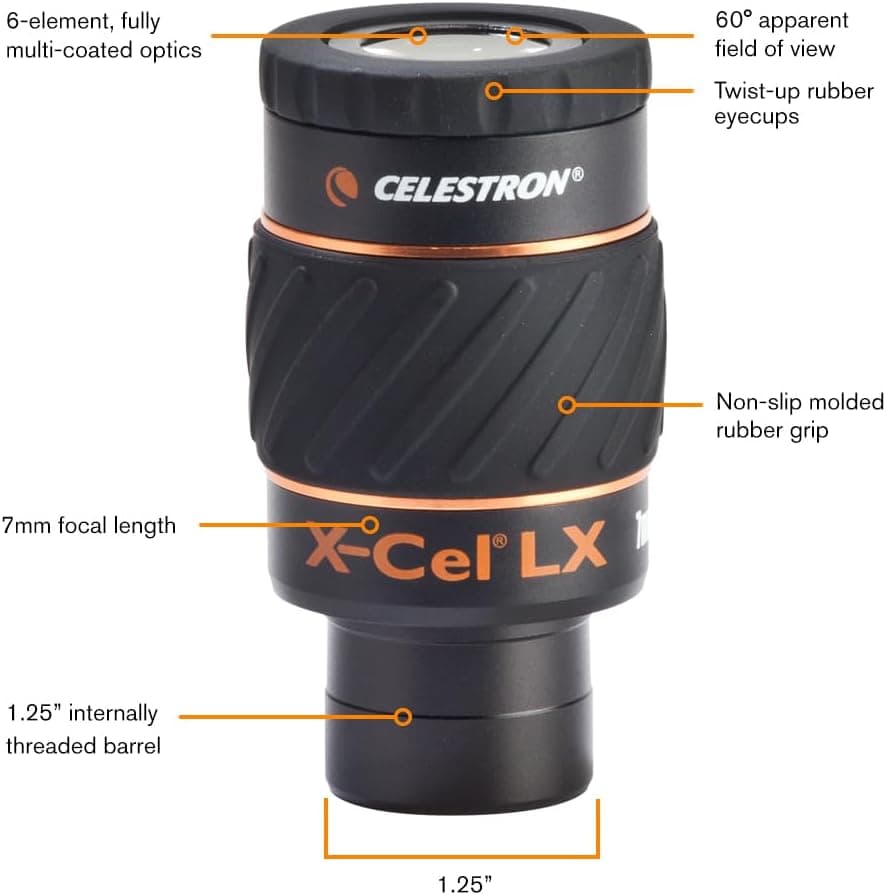

- Six-element fully multi-coated optics deliver sharp, high-contrast views of planets and the Moon
- 60-degree apparent field of view offers comfortable framing at high magnification

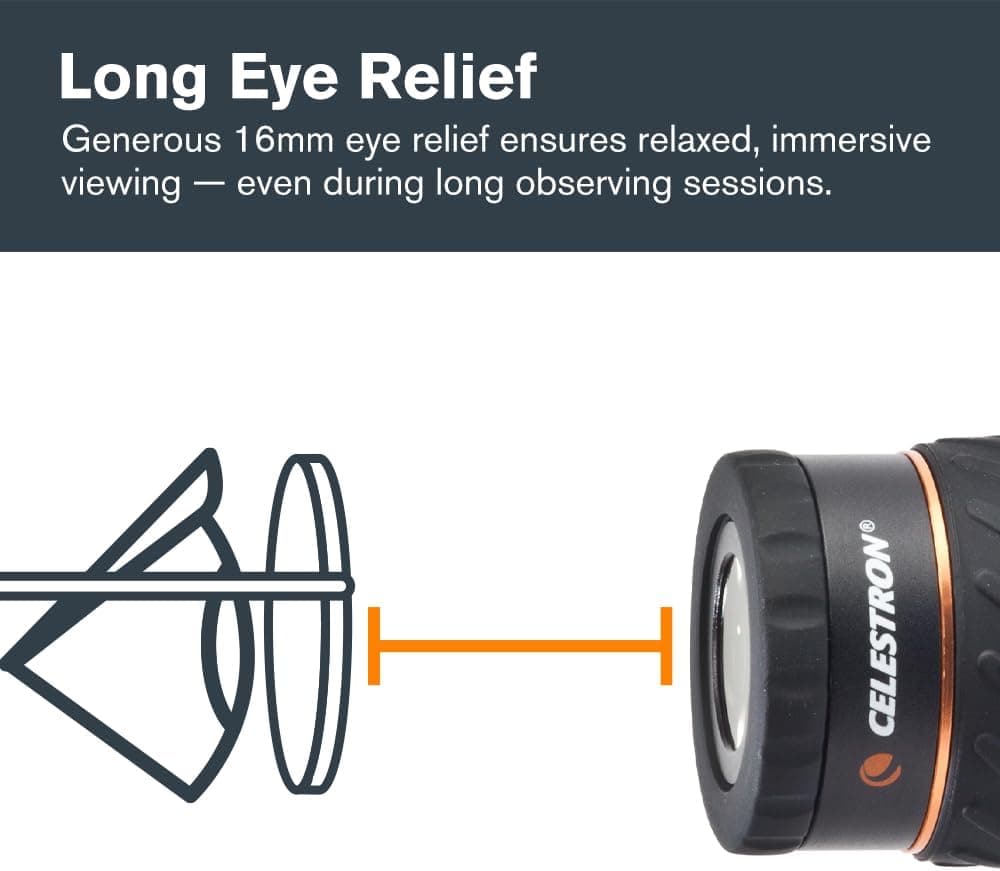

- 16mm of eye relief across the series benefits eyeglass wearers and reduces eye fatigue during long sessions
- Parfocal design with other X-Cel LX eyepieces means minimal refocusing when swapping within the lineup

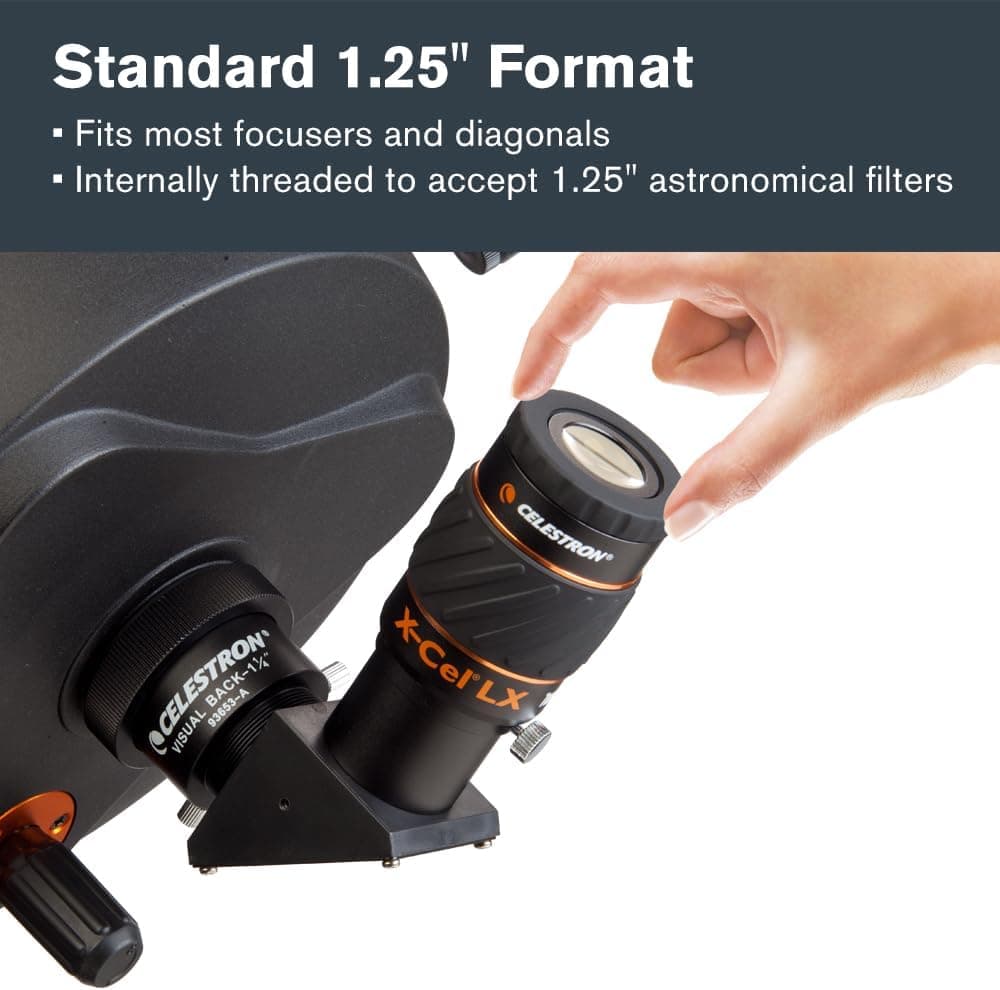

- Threaded 1.25-inch barrel accepts standard filters, including narrowband and color planetary filters
- Twist-up rubber eyeguard and textured grip make handling easy in the dark or with gloves
- Backed by a 2-year US warranty with direct support from Celestron
Specifications
| Focal Length | 7mm |
| Apparent FOV | 60° |
| Eye Relief | 16mm |
| Barrel Size | 1.25" |
| Design | Modified Erfle |
| Elements/Groups | 6/4 |
| Series | X-Cel LX |
| Coating | Fully Multi-Coated |
| Waterproof | No |
Popular Telescopes for This Eyepiece
Sky-Watcher FlexTube 300 SynScan
214x / 1.4mm exit pupil / Dobsonian
Sky-Watcher FlexTube 300P
214x / 1.4mm exit pupil / Dobsonian
Celestron NexStar 130SLT
93x / 1.4mm exit pupil / Newtonian
Unistellar eVscope Equinox
64x / 1.8mm exit pupil
Amazon Reviews
Really well made, crisp optics, great feel.
I guess you would consider the X-cel eye piece the 3rd tier offering from Celestron (2 up from the eye piece that comes with scope) and let me tell you what a diiference!! To start off with the build quality is vastly superior than that of the standard eye piece and there is a significant weight dif...
High quality EP all the way around. Great feel, etc. It might be too much power for the 8" reflector though. YMMV.
Try this eyepiece in our calculators
See how this eyepiece performs with any telescope.
