SVBONY · Apochromat Refractor

SVBONY SV550 80mm APO Triplet

64Good

Compact 80mm APO triplet that punches above its price with genuine color correction and a capable dual-speed focuser.

(37 reviews)
Apochromat RefractorEquatorial

Price updated Apr 18, 2026

Performance Scores

Value
48
Beginner
33
Astrophoto
48
Portability
63
Planetary
48
Deep Sky
38

Overview

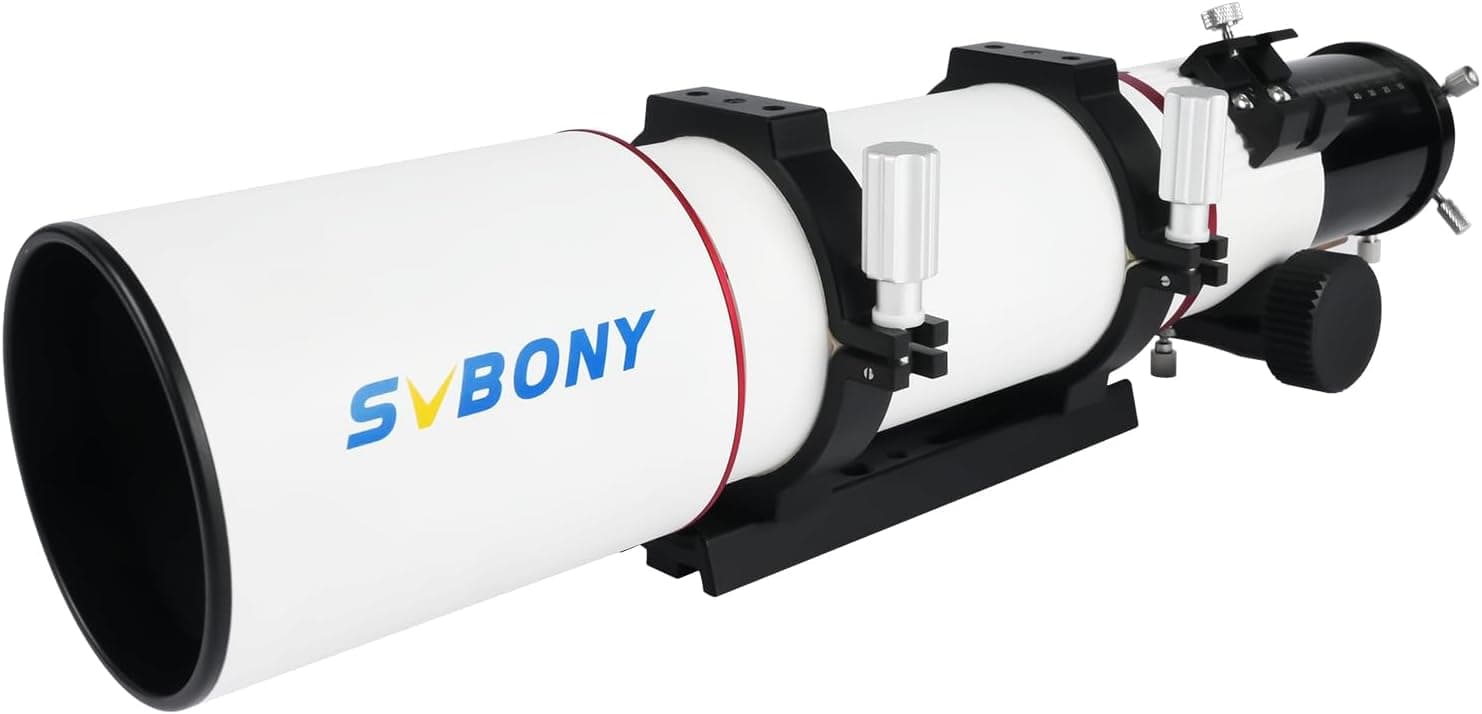

The SVBONY SV550 is an 80mm f/6 apochromatic refractor built around a true air-spaced triplet design. One element uses S-FPL51 low-dispersion ED glass, supported by two correction elements, which together do a solid job of suppressing chromatic aberration across the field. At 480mm focal length, it offers a wide enough view to frame large targets like the Orion Nebula (M42) and the Pleiades (M45) comfortably, while still delivering enough resolution to split close double stars and trace structure in brighter galaxies.

The 2.5-inch dual-speed focuser with a 1:10 fine adjustment ratio is a genuine asset here, whether you are visually observing or attaching a camera. The large focuser opening reduces vignetting on full-frame sensors, which matters if you plan to do astrophotography. At 2.86 kg, the tube is manageable on a mid-range equatorial mount, though you will want something stable; a lightweight photo tripod will likely cause frustration during longer imaging sessions.

For a beginner stepping up from achromats, or an experienced observer wanting a grab-and-go refractor that handles both visual work and imaging, the SV550 represents reasonable value at its price point.

At a Glance

80mm

Aperture

f/6

Focal Ratio

2.86kg

Weight

480mm

Focal Length

Specifications

Aperture80mm
Focal Length480mm
Focal Ratiof/6
Optical DesignApochromat Refractor
Mount TypeEquatorial
GoToNo
TrackingNo
Weight2.86 kg
Smart TelescopeNo
FinderFinder scope
FocuserDual-speed

Key Features

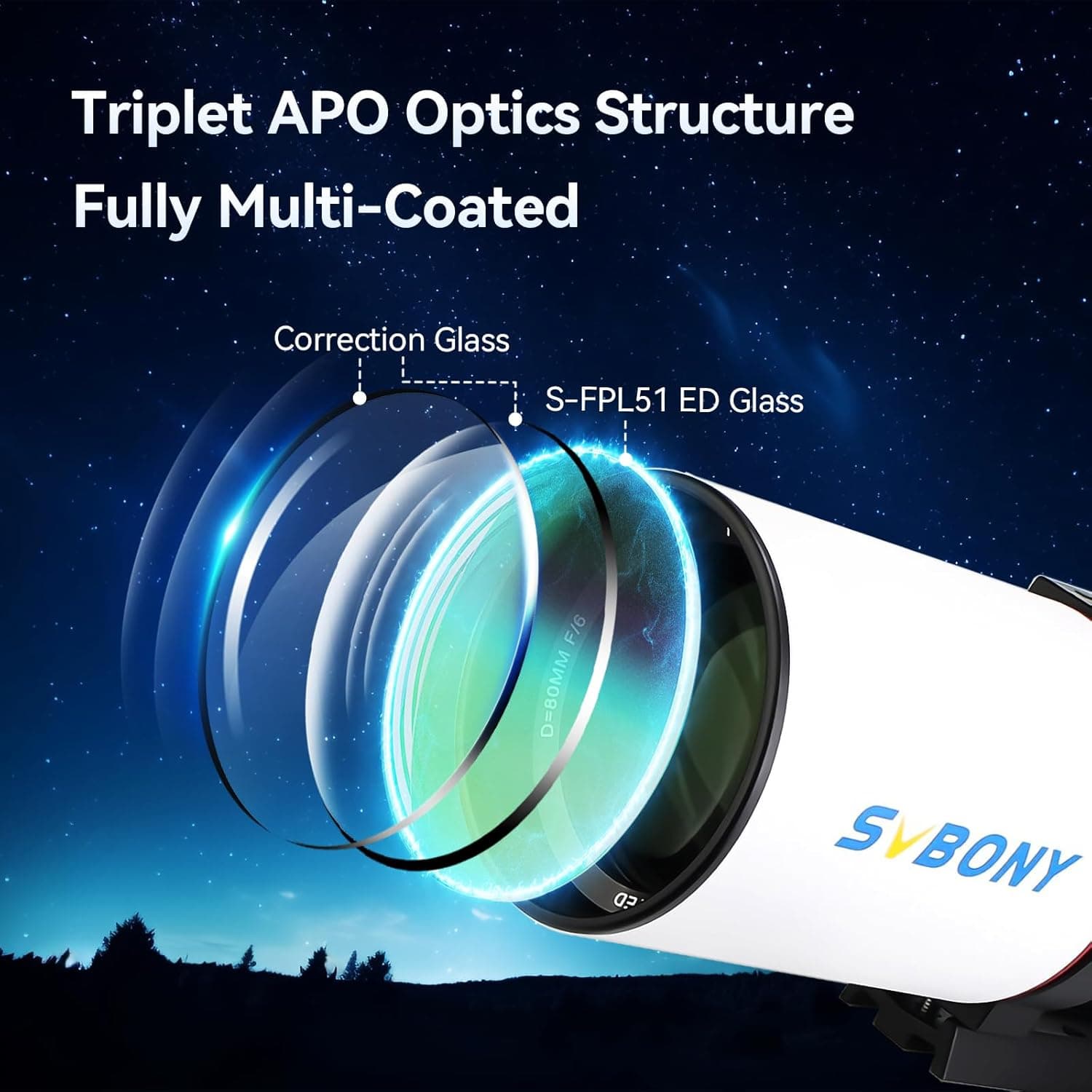

  • Air-spaced triplet with S-FPL51 ED glass delivers noticeably reduced chromatic aberration compared to single-ED or achromat designs

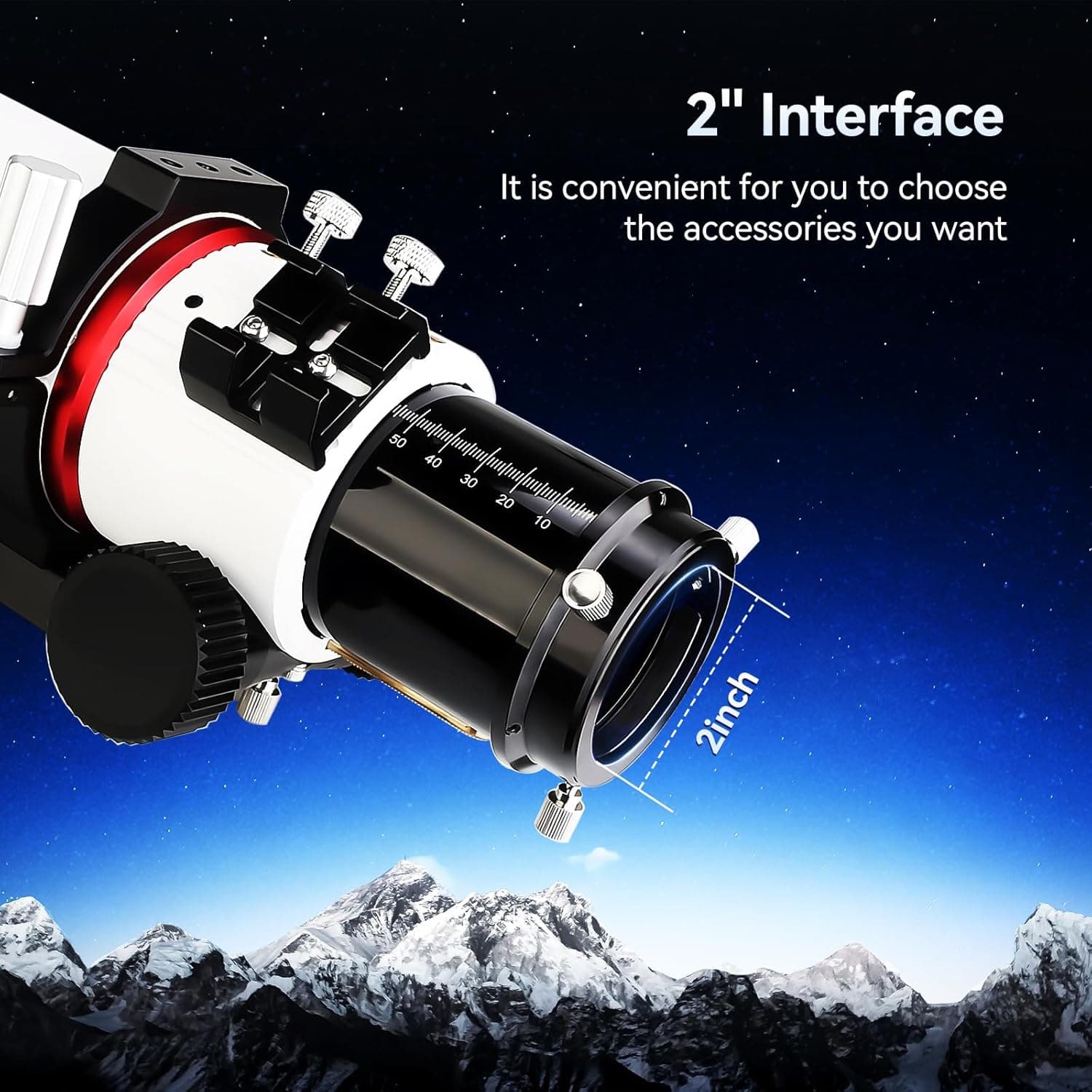

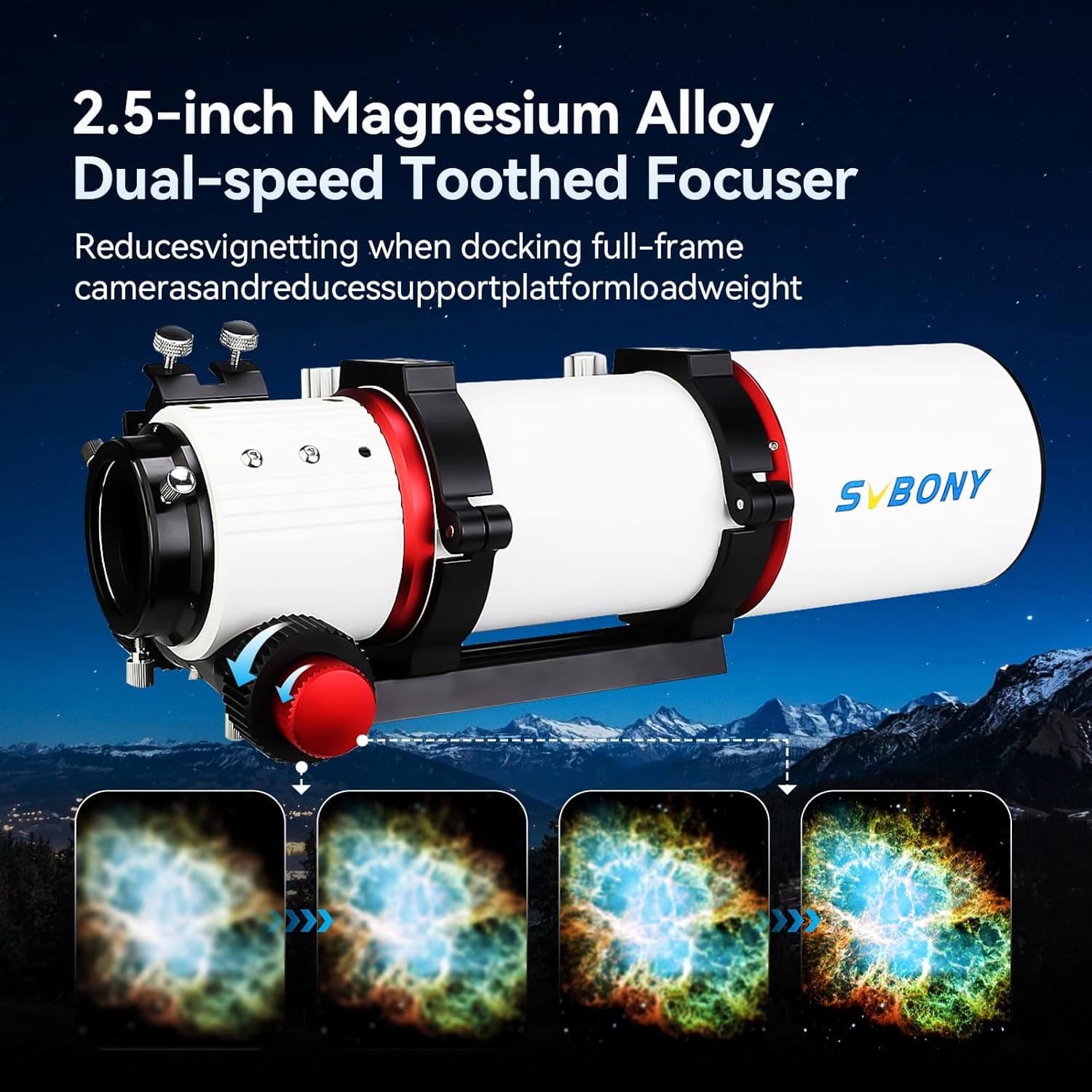

  • 2.5-inch dual-speed focuser (1:10 ratio) supports precise focus control for both visual use and camera work
  • Large focuser opening minimizes vignetting on full-frame sensors, making it a practical imaging platform
  • 480mm focal length at f/6 frames wide targets like M42 and M45 well without sacrificing sharpness at the edges

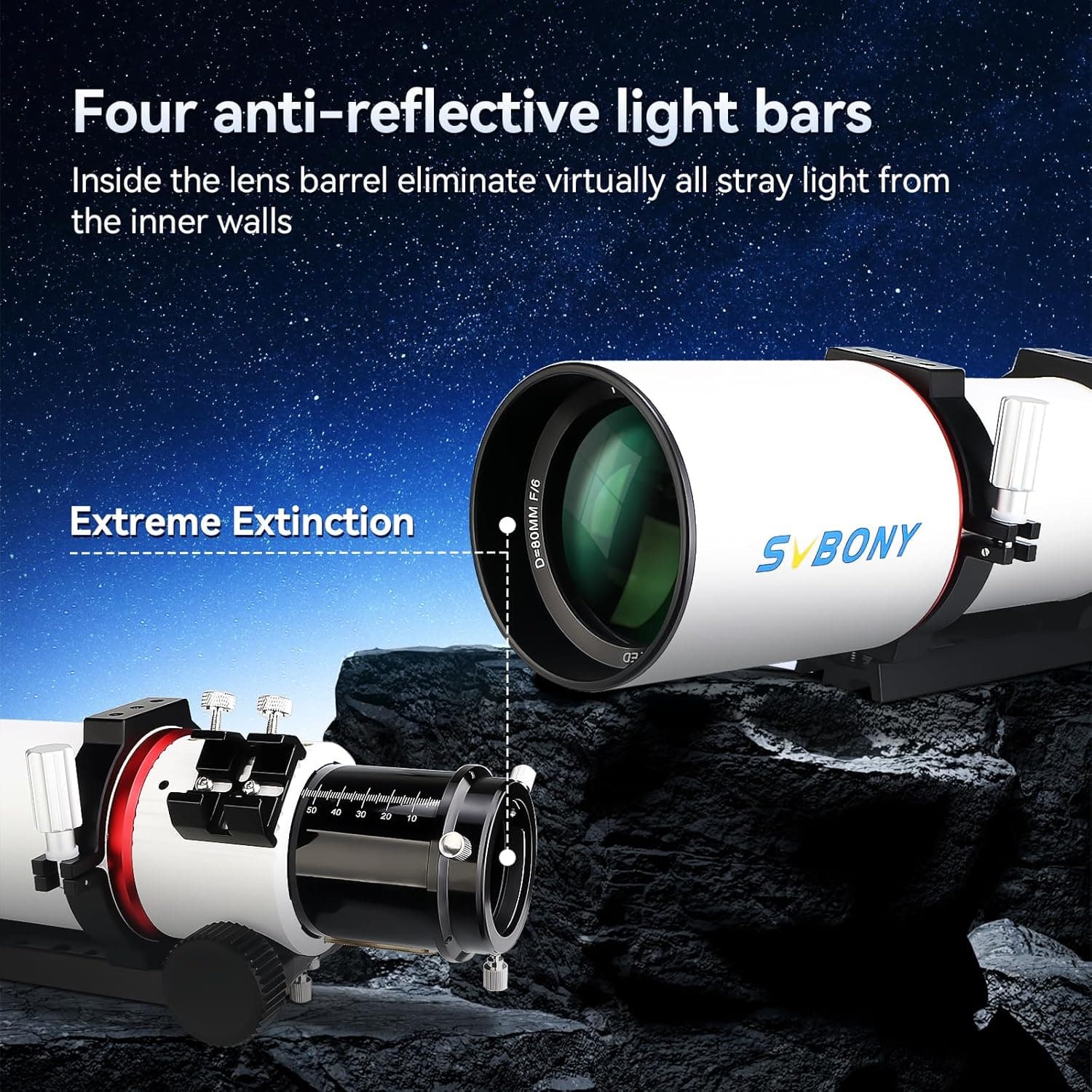

  • Multiple internal baffles and four dedicated anti-reflection barriers reduce stray light and improve contrast
  • At 2.86 kg, the tube is compact enough for travel while still offering an 80mm aperture for serious observing
  • Priced under $600 with a 4.6-star rating across 52 reviews, suggesting consistent build quality for the category

Recommended Eyepieces

Analyze full eyepiece coverage in Performance Calculator

Customer Reviews

4.4

37 reviews

5
71%
4
14%
3
8%
2
0%
1
7%
Wow X2

Ordered the SV 550. Received it a couple of days ago. I inadvertently ordered the 80 mm instead of the 122 mm. It was my mistake. Although I had initially desired the 122 mm, I was impressed with the ease of set up and the quality of the 80 mm. I had always used Different types of scopes, including ...

nagant12·May 28, 2024·Verified
Very nice OTA, excellent for astrophotography with the corrector

The build quality is superb, the optics are bright and sharp, the focus mechanism is extremely solid and smooth. The entire assembly is much more solid that it appears to be in pictures. Definitely a higher end scope. Pretty thrilled with it so far. Edit-- After getting some more clear nights boy th...

Robert Williams·Nov 12, 2022·Verified
Mine is an excellent APO

My version of this scope is excellent. My version compares favorably to other telescopes with similarly sized aperture that cost much more. I bought this for solar observing using a spectroheliograph, but I'm also using it for photometry and spectroscopy now. The focuser is stout and carries the shg...

Charles D Taylor·Dec 13, 2025·Verified
