Celestron X-Cel LX 2.3mm

Celestron
78Very Good
Modified Erfle1.25"Wide Angle

$96.32

(224 reviews)
View on Amazon

At a Glance

2.3mm

Focal Length

60°

Apparent FOV

16mm

Eye Relief

1.25"

Barrel Size

Score Breakdown

Value
79
Beginner
52
Planetary
55
Deep Sky
52
Portability
51
Astrophoto
19

Overview

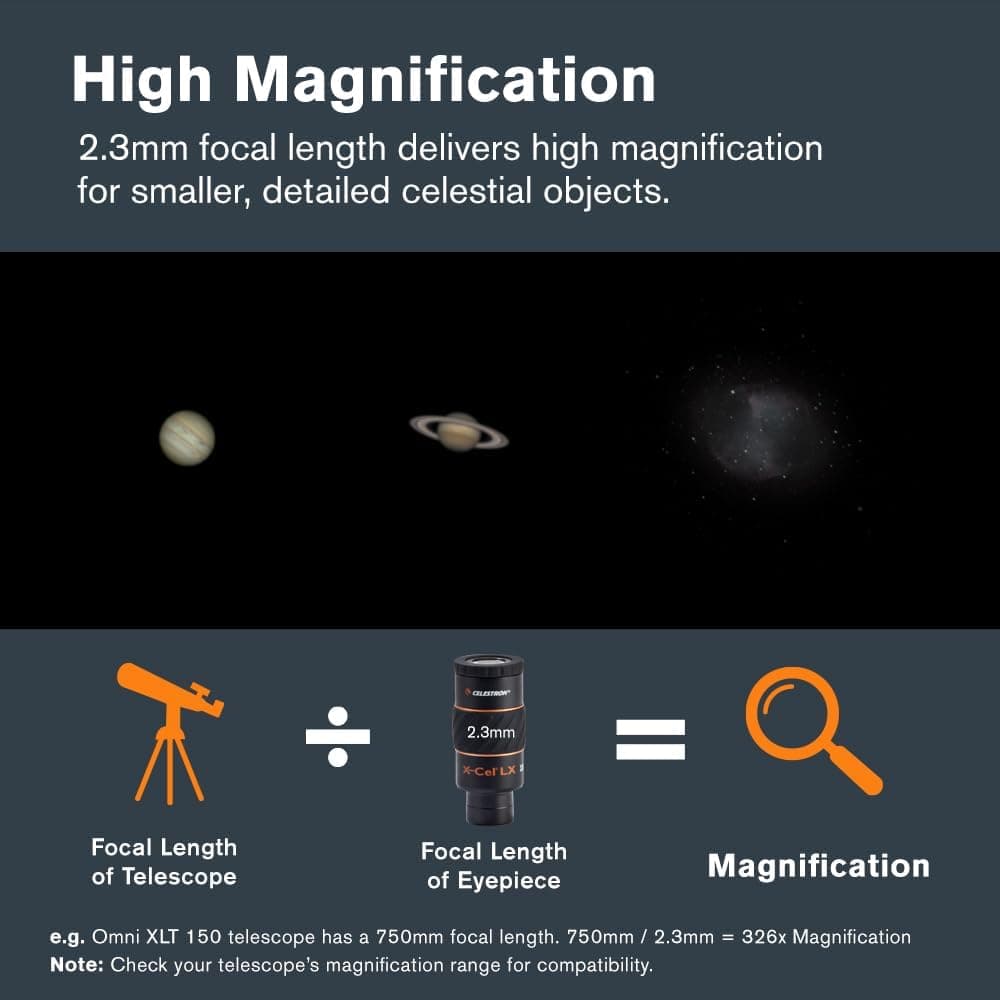

The Celestron X-Cel LX 2.3mm is a short focal length eyepiece built specifically for high-magnification planetary and lunar work. Paired with a typical 8-inch Schmidt-Cassegrain at f/10, you're looking at roughly 870x, so this eyepiece rewards telescopes with good optics and steady seeing conditions. On nights when the atmosphere cooperates, it can pull out fine detail on Jupiter's cloud bands, Saturn's Cassini Division, and lunar craters with impressive clarity.

The six-element optical design with fully multi-coated glass helps maintain contrast at these demanding magnifications, and blackened lens edges reduce internal scatter. The 60-degree apparent field of view is respectable for this focal length, giving you a bit more sky than older orthoscopic designs at similar power. One honest note: at 2.3mm, you are pushing into territory where atmospheric turbulence becomes the limiting factor more often than the eyepiece itself.

Experienced observers will get the most out of this piece, though beginners can certainly learn with it. At around $96, this sits in a reasonable middle range, neither budget nor premium, and Celestron's two-year warranty adds some reassurance. The 4.1 rating across over 200 Amazon reviews suggests consistent real-world satisfaction.

Key Features

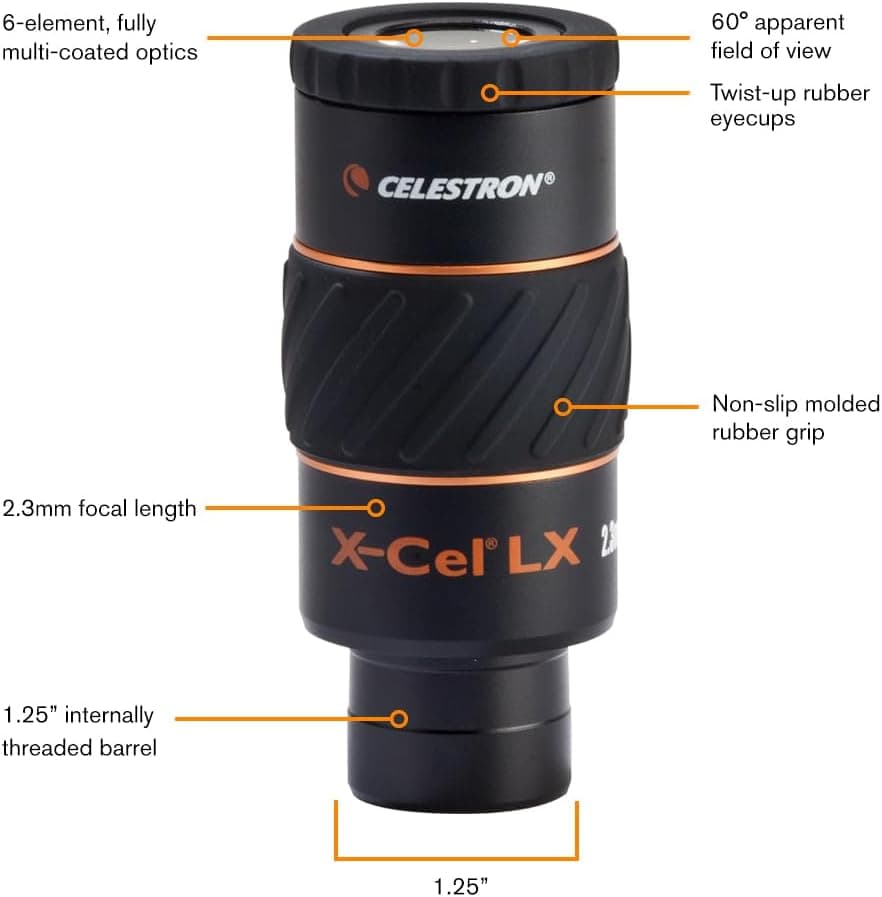

  • Six-element fully multi-coated optics improve light transmission and contrast at high magnifications
  • 60-degree apparent field of view offers more visual space than traditional high-power designs

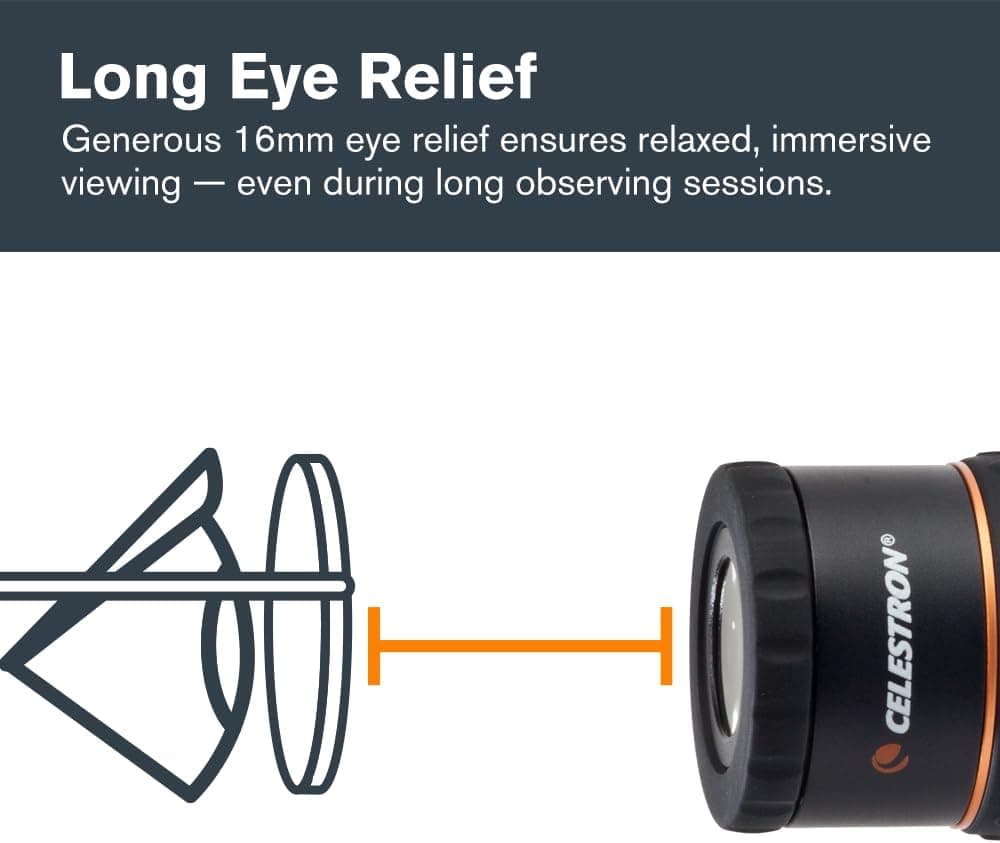

  • 16mm eye relief is consistent across the X-Cel LX series, reducing fatigue during extended sessions

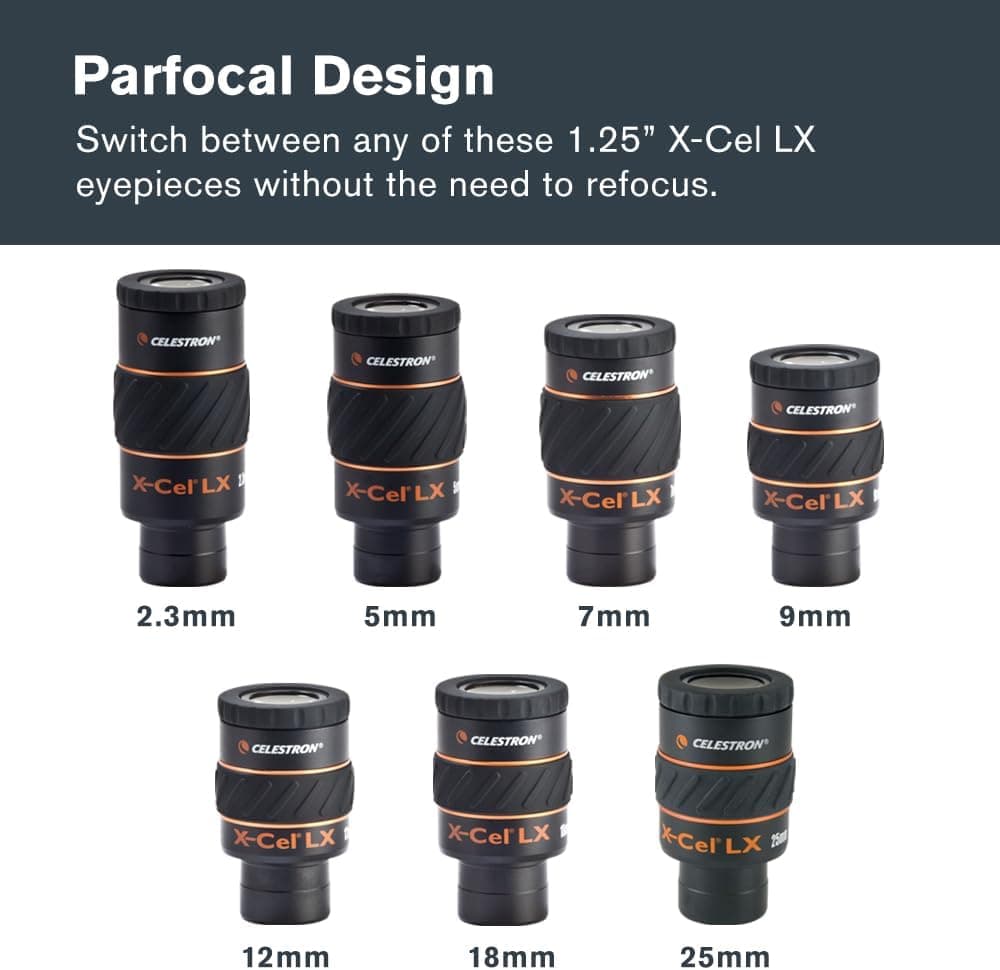

  • Parfocal with other X-Cel LX eyepieces, meaning minimal refocusing when swapping during a session

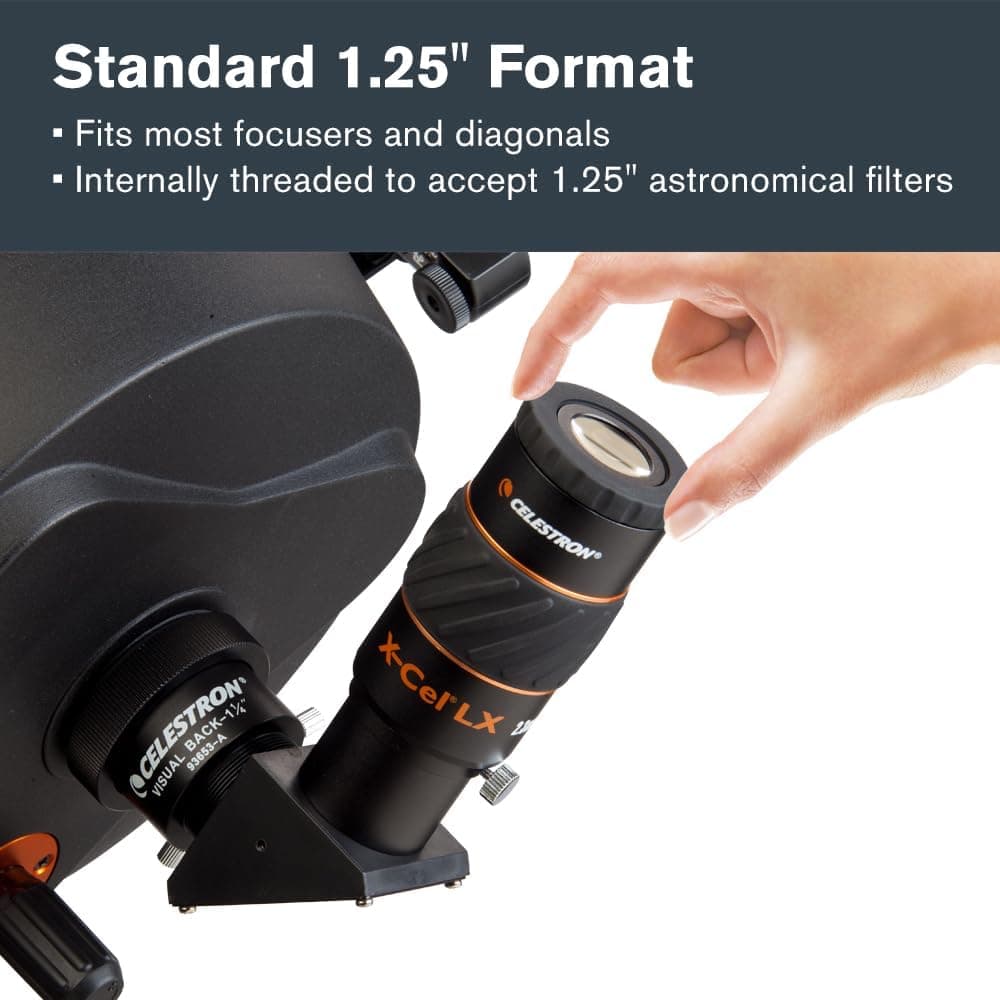

  • Threaded 1.25-inch barrel accepts standard filters, useful for lunar or planetary contrast work
  • Twist-up rubber eyeguard adjusts for eyeglass wearers and helps block stray light
  • Two-year US warranty and domestic customer support included with purchase

Specifications

Focal Length2.3mm
Apparent FOV60°
Eye Relief16mm
Barrel Size1.25"
DesignModified Erfle
Elements/Groups6/4
SeriesX-Cel LX
CoatingFully Multi-Coated
WaterproofNo
