At a Glance
6.5mm
Focal Length
76°
Apparent FOV
19mm
Eye Relief
1.25"
Barrel Size
Score Breakdown
Overview
The Baader Morpheus 6.5mm sits at the higher end of the eyepiece market, and it earns that position through optical quality rather than marketing claims. The 76-degree apparent field of view genuinely delivers an immersive experience when sweeping through star clusters or scanning nebulae, giving you more sky than standard wide-angle designs without the edge distortion that plagues cheaper alternatives. At 6.5mm, this eyepiece produces higher magnifications, which makes it well suited for resolving lunar craters, splitting double stars, and examining planetary detail.
The 18.5mm eye relief is a practical advantage here, since high-magnification sessions require you to hold your eye position steady, and the extra relief reduces fatigue considerably. Eyeglass wearers will find the full field accessible without pressing against the lens. Build quality is notably solid. The watertight housing, rubber grip, and Phantom Group coatings reflect Baader's attention to long-term durability and contrast.
The optical design of 8 lenses in 5 groups keeps aberrations low across the full field, which matters at these magnifications. Before purchasing, verify your telescope's focal ratio is compatible, as very fast scopes below f/4 may show some coma at the field edges.
Key Features
- 76-degree apparent field of view creates a genuinely wide, immersive view of deep-sky objects and star clusters
- 18.5mm eye relief makes comfortable, fatigue-free viewing accessible even for observers wearing eyeglasses
- Fits both 1.25-inch and 2-inch focusers without additional adapters, adding flexibility across different telescopes
- Phantom Group coatings and internal baffling maximize contrast and reduce stray light scatter
- Sealed, watertight housing and rubber grip support reliable field use in varied outdoor conditions

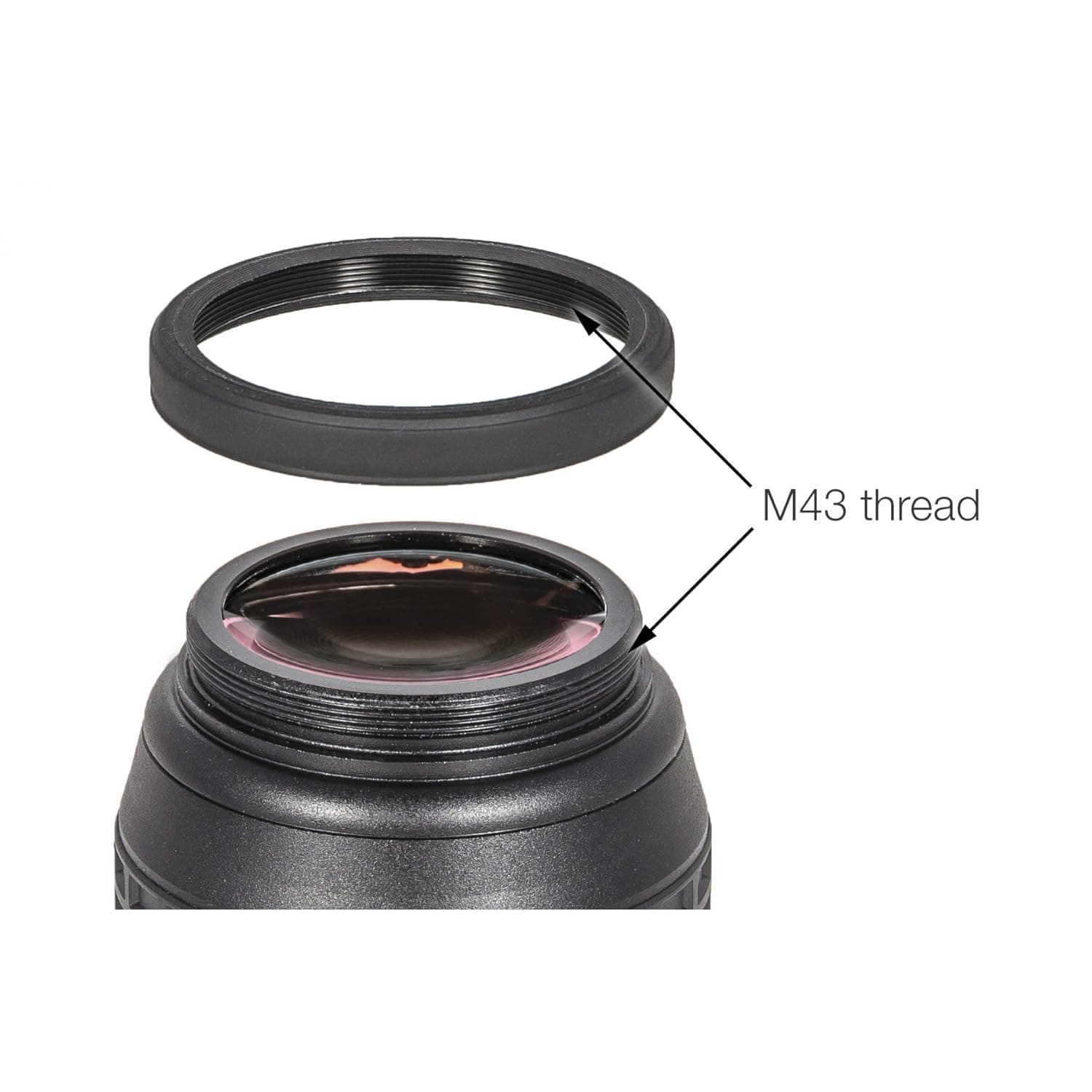

- Compatible with binoviewers and threaded for standard filters, extending its usefulness beyond solo visual observing
Specifications
| Focal Length | 6.5mm |
| Apparent FOV | 76° |
| Eye Relief | 19mm |
| Barrel Size | 1.25" |
| Design | Modified Nagler |
| Elements/Groups | 8/5 |
| Series | Morpheus |
| Coating | Phantom Group Coating |
| Waterproof | No |
Popular Telescopes for This Eyepiece
Sky-Watcher FlexTube 300 SynScan
231x / 1.3mm exit pupil / Dobsonian
Sky-Watcher FlexTube 300P
231x / 1.3mm exit pupil / Dobsonian
Celestron NexStar 130SLT
100x / 1.3mm exit pupil / Newtonian
Unistellar eVscope Equinox
69x / 1.7mm exit pupil
Amazon Reviews
I bought the 17.5mm Baader Planetarium Morpheus to replace a 17mm Televue Nagler Series 4 that was lost in a move of my household. Prior to this, I purchased a set of Meade and Orion Plossls and, later, a set of Baader Plateriam Hyperions, so I can compare the Morpheus with a 18mm Meade 4000 series ...

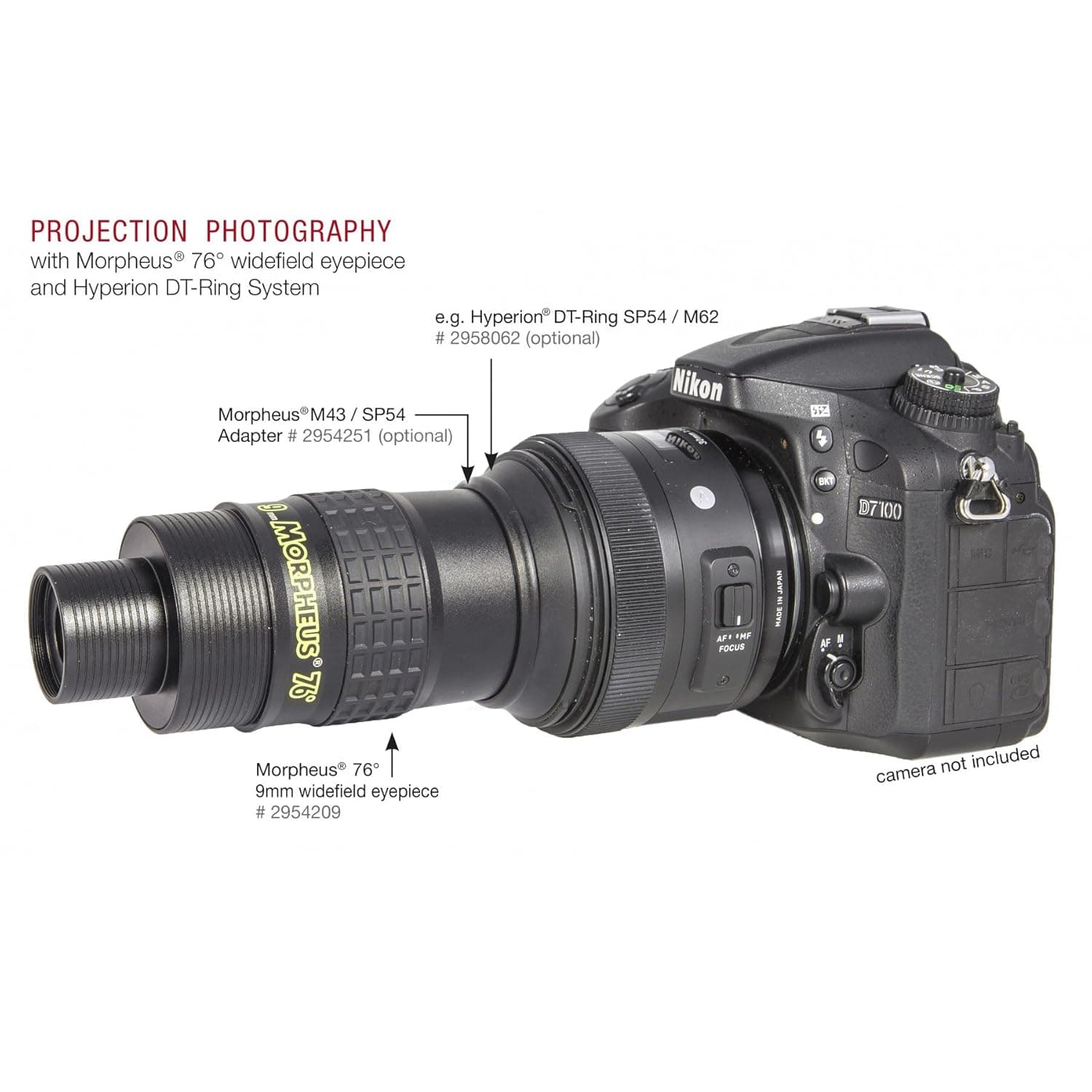

Eyepiece provides awesome view of objects. Long eye-relief is great. excellent mid-range magnification with a good price range. Comes with everything one might need for either viewing or projection astro-photography.
I installed this lens in my Kowa 883 sporrting scope using the astro-adapter from Kowa. This gave me a magnification of about 125X. Looking at the landscape of the full Moon is breathtaking. I also used it to get a final glimpse of the recent comet. Using it on land is iffy because of atmospheric co...
Try this eyepiece in our calculators
See how this eyepiece performs with any telescope.
