At a Glance
25mm
Focal Length
60°
Apparent FOV
16mm
Eye Relief
1.25"
Barrel Size
Score Breakdown
Overview

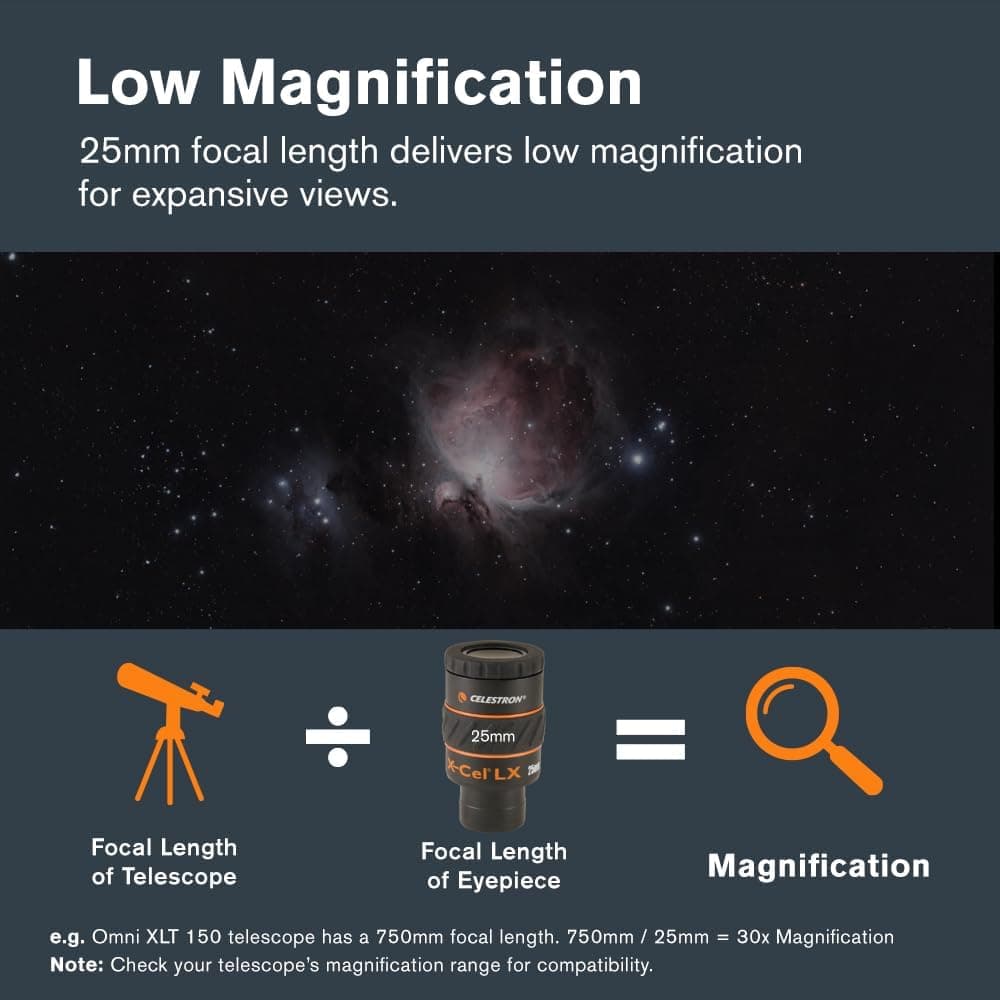

The Celestron X-Cel LX 25mm is a solid general-purpose eyepiece that earns its place in an amateur astronomer's kit. At 25mm focal length, it delivers lower magnification and a wider view, making it a practical choice for scanning lunar detail, framing planetary discs, and pulling in brighter deep-sky targets like open clusters and larger nebulae. The six-element fully multi-coated optical design keeps light transmission high and contrast strong, and blackened lens edges help suppress internal scatter, which matters when you are trying to hold detail on the Moon or Jupiter.
The 60-degree apparent field of view is not the widest available at this price, but it is wide enough to feel comfortable and immersive without pushing optical distortion at the edges. All X-Cel LX eyepieces share 16mm of eye relief, which is genuinely useful if you wear glasses while observing. The series is also parfocal, so swapping between focal lengths in the lineup requires minimal refocusing.
The threaded 1.25-inch barrel accepts standard filters, a practical touch for Moon and light pollution work. At $89, it sits in a competitive range, but the build quality and optical consistency justify the price for most buyers.
Key Features

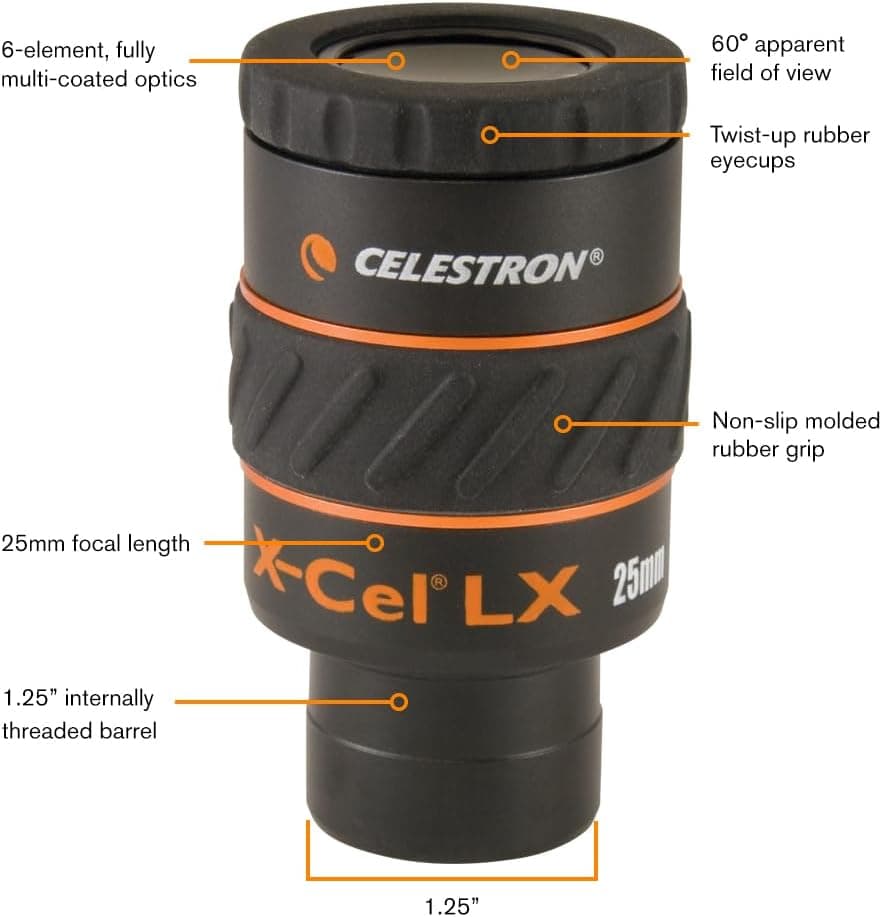

- Six-element fully multi-coated optics deliver sharp, high-contrast views across the 60-degree field

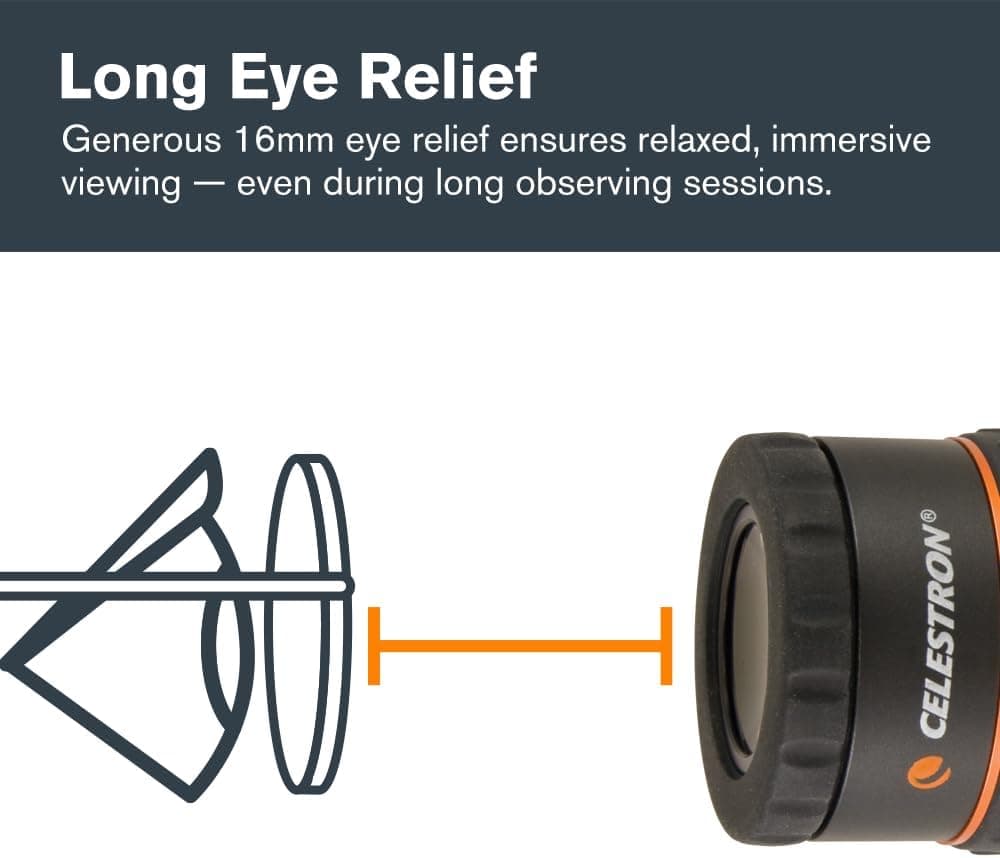

- 16mm of eye relief is comfortable for eyeglass wearers and extended observing sessions
- Parfocal design within the X-Cel LX series means minimal refocusing when switching eyepieces
- Blackened lens edges reduce internal scatter, improving contrast on bright targets like the Moon and planets

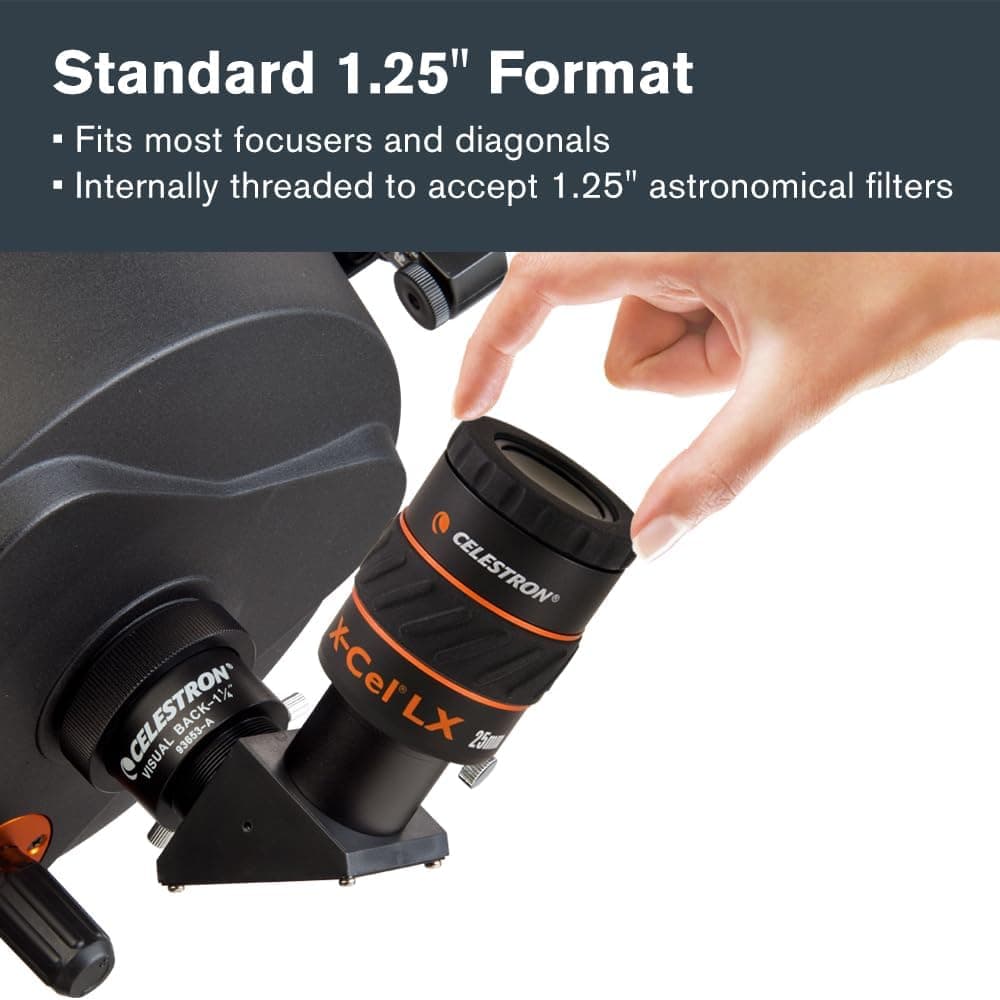

- Threaded 1.25-inch barrel accepts standard filters for light pollution reduction or lunar observation
- Twist-up rubber eyeguard adjusts easily and helps block stray light during use
- Textured rubber grip allows secure handling even when wearing gloves in cold conditions
Specifications
| Focal Length | 25mm |
| Apparent FOV | 60° |
| Eye Relief | 16mm |
| Barrel Size | 1.25" |
| Design | Modified Erfle |
| Elements/Groups | 6/4 |
| Series | X-Cel LX |
| Coating | Fully Multi-Coated |
| Waterproof | No |
Popular Telescopes for This Eyepiece
Sky-Watcher FlexTube 300 SynScan
60x / 5.1mm exit pupil / Dobsonian
Sky-Watcher FlexTube 300P
60x / 5.1mm exit pupil / Dobsonian
Celestron 114LCM
40x / 2.9mm exit pupil / Newtonian
Celestron EdgeHD 800 OTA
81x / 2.5mm exit pupil / Schmidt-Cassegrain
Amazon Reviews
I recently purchased the Celestron Xcel LX Series 25mm lens for my Celestron 8 SE telescope, and I couldn't be more pleased with the quality and performance I received, especially considering the reasonable price point. The difference in quality between the Xcel LX Series lens and the ones that came...
I guess you would consider the X-cel eye piece the 3rd tier offering from Celestron (2 up from the eye piece that comes with scope) and let me tell you what a diiference!! To start off with the build quality is vastly superior than that of the standard eye piece and there is a significant weight dif...
A solid, well built eyepiece, that does not show not any chipping “paint” when repeatedly tightening the DIY holding screw of my DIY Crayford – in slightly different places. If you need something light, go for a Plössl, because this baby weighs in at a respectable 7.3 oz / 207 g, which is about half...
