At a Glance
18mm
Focal Length
60°
Apparent FOV
16mm
Eye Relief
1.25"
Barrel Size
Score Breakdown
Overview

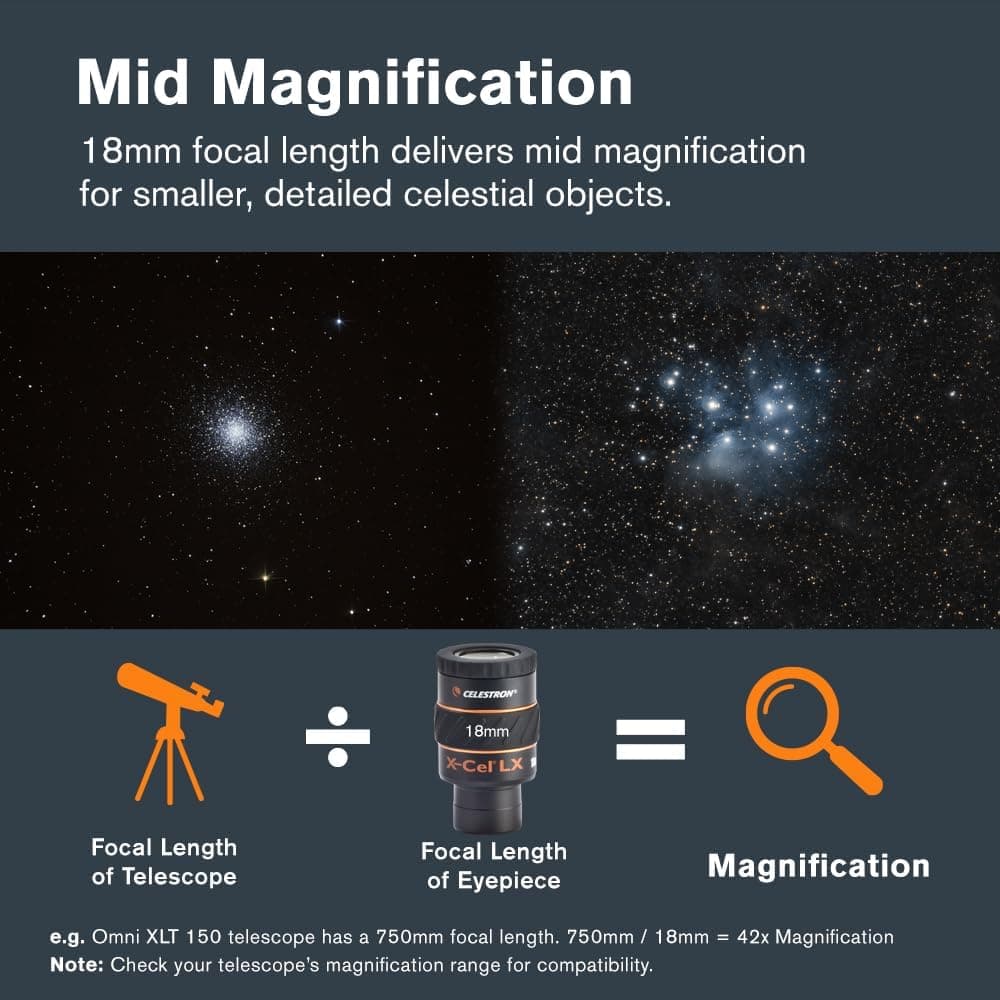

The Celestron X-Cel LX 18mm sits in a sweet spot for visual astronomy. At 18mm, it works well as a medium-power eyepiece, delivering enough magnification to resolve lunar craters and planetary detail without pushing your telescope to uncomfortable exit pupils. The 60-degree apparent field of view is wide enough to feel immersive without the optical compromises that come with wider designs. The six-element fully multi-coated optical system keeps light transmission high and scattered light low, which matters more than most beginners expect.
Blackened lens edges further reduce internal reflections, and the result is noticeably better contrast on the Moon and bright planets. All X-Cel LX eyepieces share 16mm of eye relief, which is comfortable for most observers, including those who wear glasses. Being parfocal with the rest of the X-Cel LX lineup is a practical advantage. Swapping between focal lengths during a session without hunting for focus saves time and frustration.
The threaded barrel accepts standard 1.25-inch filters, so adding a Moon filter or color planetary filter is straightforward. At around $93, this eyepiece competes well against similarly priced options and earns its strong ratings honestly.

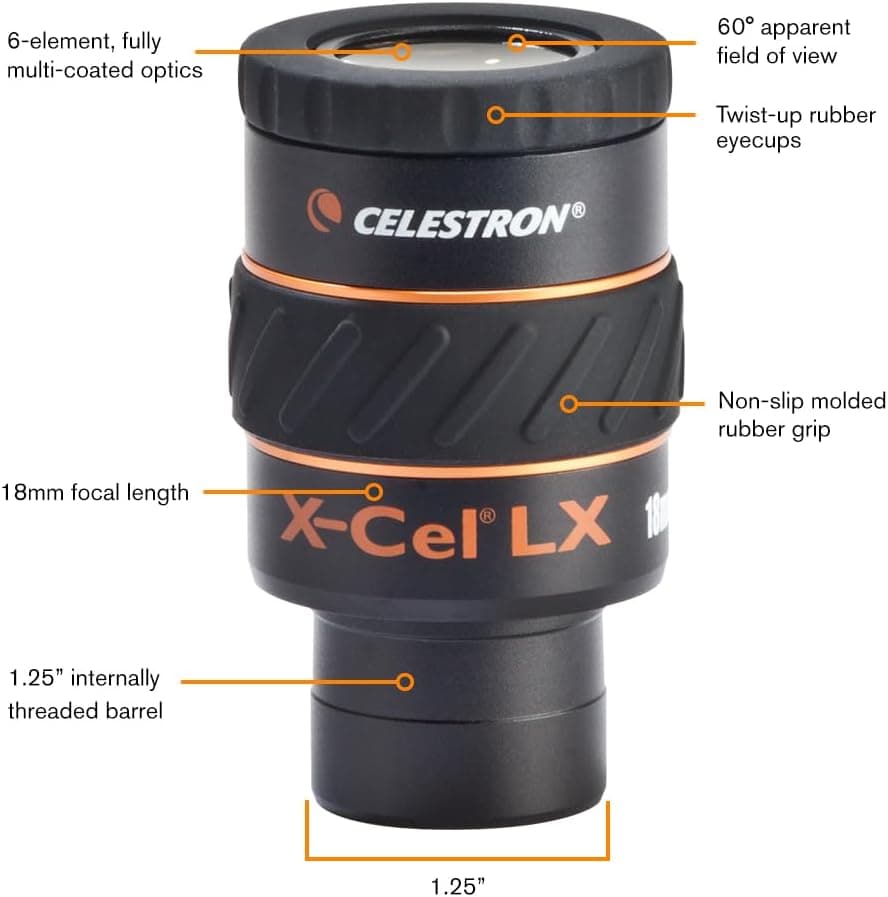

Key Features
- Six-element fully multi-coated optics provide high contrast and sharp images, particularly useful on the Moon and planets
- 60-degree apparent field of view offers an engaging view without the edge distortion common in wider designs

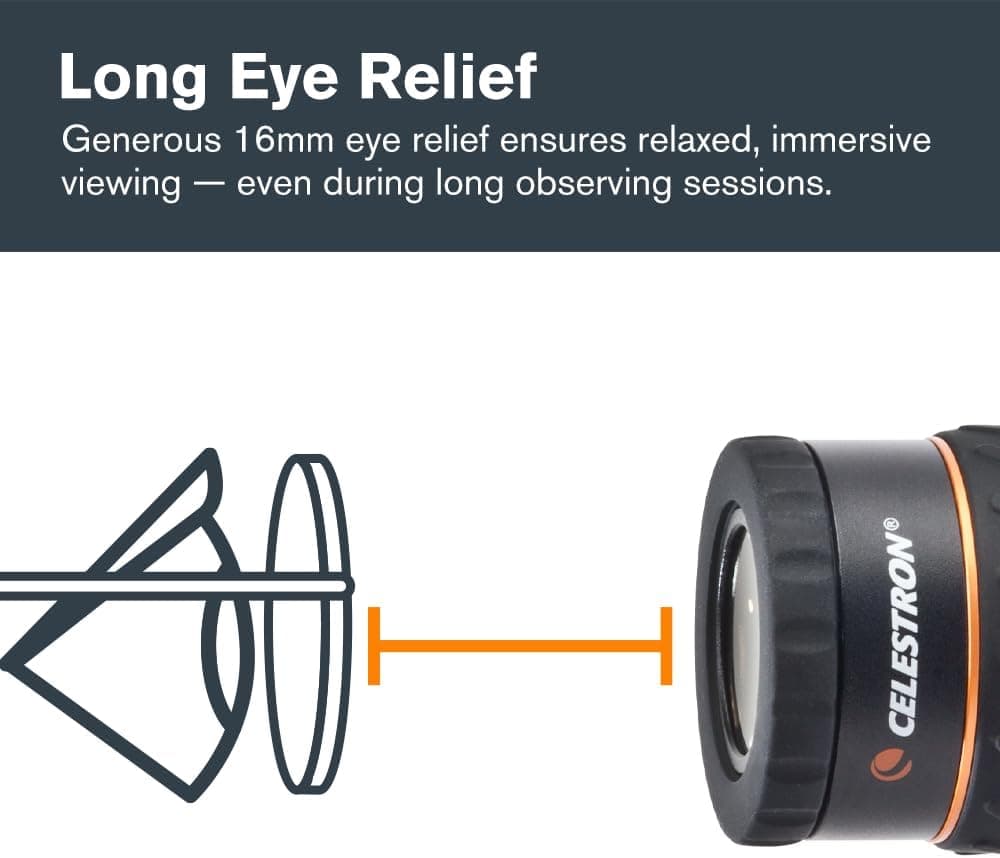

- 16mm eye relief works comfortably for most observers, including eyeglass wearers
- Parfocal with all other X-Cel LX eyepieces, so focus stays consistent when switching focal lengths during a session

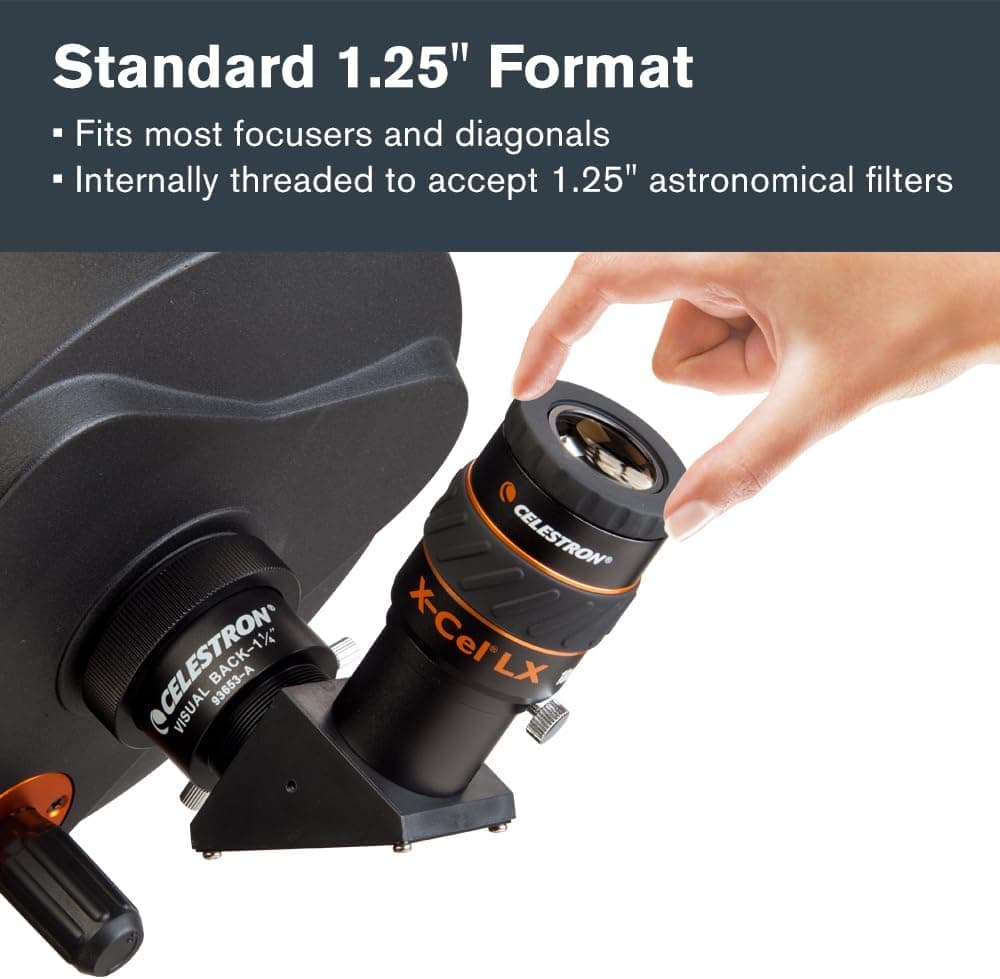

- Threaded 1.25-inch barrel accepts standard filters, making it easy to add lunar or planetary filters
- Blackened lens edges reduce internal glare and improve overall contrast
- Two-year warranty and US-based support provide reliable backup if any issues arise
Specifications
| Focal Length | 18mm |
| Apparent FOV | 60° |
| Eye Relief | 16mm |
| Barrel Size | 1.25" |
| Design | Modified Erfle |
| Elements/Groups | 6/4 |
| Series | X-Cel LX |
| Coating | Fully Multi-Coated |
| Waterproof | No |
Popular Telescopes for This Eyepiece
Sky-Watcher FlexTube 300 SynScan
83x / 3.7mm exit pupil / Dobsonian
Sky-Watcher FlexTube 300P
83x / 3.7mm exit pupil / Dobsonian
Celestron 114LCM
56x / 2.0mm exit pupil / Newtonian
Celestron EdgeHD 800 OTA
113x / 1.8mm exit pupil / Schmidt-Cassegrain
Amazon Reviews
This Celestron line of eyepieces, the "Celestron X-Cel LX Series Eyepiece", is an excellent value, and very well made, I consider them high quality, though they aren't Televue eyepieces, they are still a very nice set of eyepieces! I immediately noticed the image I was viewing was much sharper than ...
Celestron's X-Cel LX line of eyepieces fill an important need for amateur astronomers and telescope owners: The need for an excellent quality eyepiece at affordable prices. These EP's are hefty, solid, and weighty. The 6 piece element design offers excellent Field of View, Eye Relief, and Exit Pupil...
The first picture is with this eyepiece. The second is with a stock 25 mm eyepiece. The increased detail is amazing!
Try this eyepiece in our calculators
See how this eyepiece performs with any telescope.
